Referencia LH46UDDPUBB

Monitor SAMSUNG UD46D-P LH46UDDPUBB/ZA 46" FHD Bezel 2.3 mm HDMI

Condición: Nuevo producto

Disponible el:

$ 91,108.95 MXN IVA incluido

Pregunta por disponibilidad y precio, aquí

La cantidad mínima en el pedido de compra para el producto es 1

Precios Especiales para Proyectos de Volumen, Favor de Verificar Precios y Existencias previo a su compra * Precios con IVA y Garantía en Mexico Directo con Fabricantes.

• Más

Monitor Profesional SAMSUNG UD46D-P LH46UDDPUBB/ZA

D-LED DID 46" FullHD Bezel 2.3 mm D-SUB DVI-D Display Port HDMI



Este producto se maneja sobre pedido



y es necesario verificar existencias con el fabricante.

SOMOS DISTRIBUIDORES DIRECTOS DE

SAMSUNG





Features

Provide seamless viewing with

unprecedented 3.5 mm bezel width

Samsung UD46D-P SMART signage with FHD

can take your digital messaging to the next level

thanks to unsurpassed Samsung bezel innovation.

36% more narrow than the existing UD46C, and

unrivalled among all competitors, these never before

seen 3.5 mm bezel displays can amaze audiences

when combined together to form seamless video

walls with virtually no visual distraction. From 4

meters (13 feet) away UD46D-P bezels are invisible

to the naked eye creating a truly uninterrupted

image for optimized visual messaging. Use this

cutting-edge display technology to entice customers

into your retail shop, replace traditional whiteboards

in your corporate meeting room or provide important

real-time information in public places. Additionally,

provide highly bright, vibrant picture quality without

glare or blurriness to completely captivate audiences

with a powerful viewing experience.



* Incomparable 3.5 mm bezel width: Market-leading

3.5 mm ultra-narrow bezels (bezel to bezel) enable

displays to deliver seamless, impressive images

and superior brand experience

* Brightness-enhanced picture quality: Full-HD

resolution with new backlit dimming solution to improve

contrast along with improved brightness create

outstanding picture quality

* Innovative anti-glare panels: Anti-glare panels prevent

dazzling glare from disrupting the view along with

Anti-retention to reduce haze by 44%



Simplify content delivery with a

hassle-free all-in-one video wall solution

Improve productivity and reduce operating costs by installing

and configuring the signage solution with greater ease. The

embedded, all-in-one 2nd Generation SSSP eliminates the

need for a separate PC or media player to streamline digital

signage operation and improve total cost of ownership (TCO).

What's more, this significantly upgraded 2nd Generation

SSSP substantially improves performance with a remarkably

faster processing speed for rich, seamless messaging. In

addition, the new SSSP supports a picture-in-picture (PIP)

size over 50 percent of the digital signage area for operational

excellence, compared to less than 50 percent in dual-core

digital signage. To boost efficiency, content deployment and

sharing is simplified with a PC-less network connection that

lets you plug in a USB and link multiple displays over a daisy

chain configuration. Daisy chain capability allows users to

operate multiple displays in a 10-by-10 configuration without

an additional PC.

TECH SPECS

Display

Diagonal Size

46"

Panel Type

D-LED DID

Resolution

1920 x 1080

Pixel Pitch (HxV)

0.53025 mm (H) x 0.53025 mm (V)

Active Display Size (HxV)

1018.08 mm x 572.67 mm

Contrast Ratio

3500 : 1 (typ)

Viewing Angle (H/V)

178° / 178°

Response Time

8 ms

Display Color

8 bit - 16.7 M

H-Scanning Frequency

30 kHz ~ 81 kHz

Maximum Pixel Frequency

148.5 MHz

V-Scanning Frequency

48 Hz ~ 75 Hz

Brightness

Max 700 cd/m²

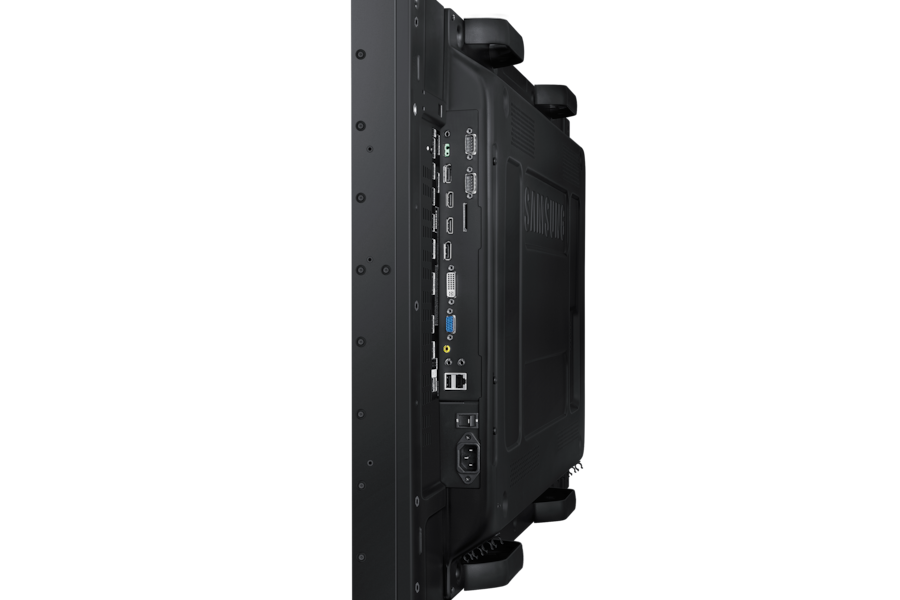

Connectivity

RGB In

Analog D-SUB, DVI-D, Display Port 1.2

Video In

HDMI, HDMI, Component (CVBS Common)

Audio In

Stereo mini Jack

RGB Out

DP1.2 (Loop-out)

Audio Out

Stereo mini Jack

Power

Power Supply

AC 100 - 240 V ~ (+ / - 10%), 50 / 60 Hz

Power Consumption (Off Mode)

Less than 0.5 W

Power Consumption (Sleep Mode)

Less than 0.5 W

Dimension

Set Dimension (WxHxD)

1022.1 x 576.7 x 97 mm

Package Dimension (WxHxD)

1255 x 798 x 355 mm

Weight

Set Weight

18 kg

Package Weight

22.4 kg

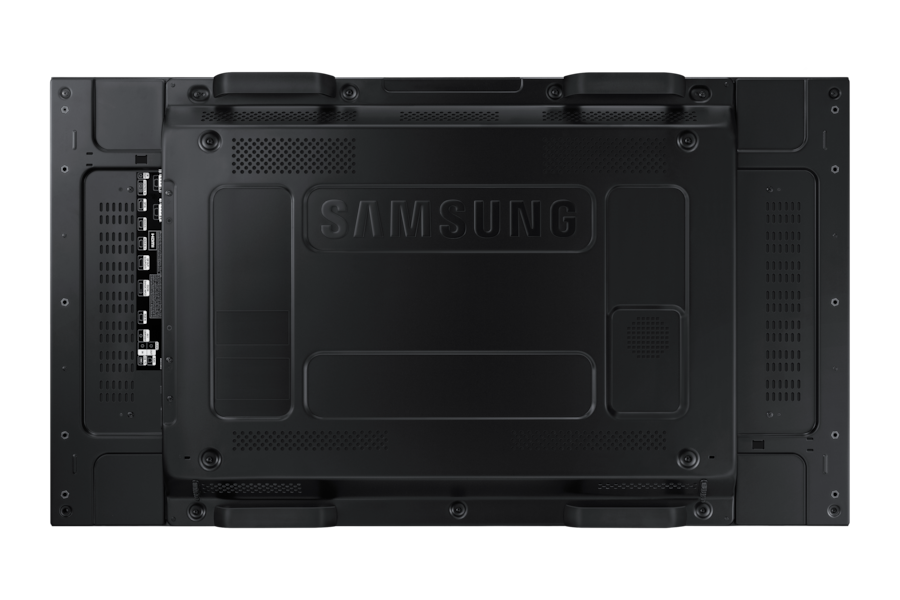

Mechanical Specification

VESA Mount

600 x 400 mm

Bezel Width

2.3 mm (U / L), 1.2 mm (R / B)

Media Player Option Type

Embbeded, SBB-C (Slide In)

Operation Conditions

Temperature

0 °C ~ 40 °C

Humidity

10 ~ 80%

General Feature

Special

SD Card Slot, ACM Support (Advanced Color Management),

Magic Clone (to USB), Auto Source Switching &

Recovery, Lamp Error Detection, Anti Retention (Haze 44%),

Temperature Sensor, RS232C / RJ45 MDC, Plug and Play

(DDC2B), PIP / PBP, Video Wall (10 x 10), Pivot Display,

Image Rotation, Button Lock, DP 1.2 Digital Daisy Chain

(Supporting 2 x 2 UHD Resolution, HDCP Support), Smart

Scheduling, Smart F / W update, Clock Battery (80 hrs

Clock Keeping), Built In MagicInfo

Internal Player (MagicInfo)

MagicInfo Support

Yes

Certification and Compliance

EMC

FCC (USA): FCC Part 15, Subpart B class B,

CE (Europe): EN55022, EN55024, VCCI:

(Japan) V-3 (CISPR22), KCC (Korea): KN22,

KN24, BSMI (Taiwan): CNS13438 (CISPR22),

C-Tick (Australia): AS / NZS3548 (CISPR22),

CCC (China): GB 9254-2008, GB 17625.1-2011

Environment

UL (USA): UL 60950-1, CSA (Canada): CSA

C22.2 No. 60950-1, TUV (Germany): EN60950-1,

NEMKO (Norway): EN60950-1, KC (Korea):

K60950-1, CCC (China): GB 4943.1-2001, PSB

(Singapore): IEC60950-1, GOST (Russia): IEC60950-1,

EN55022 , SIQ (Slovenia): IEC60950-1, EN55022,

PCBC (Poland): IEC60590-1, EN55022, NOM

(Mexico): NOM-019-SCFI-1993, IRAM (Argentina):

IEC60950-1, SASO (Saudi Arabia): IEC60950-1

Safety

ENERGY STAR 6.0 (USA)

Eco

Energy Efficiency Class

C

Accessory

Included

Quick Setup Guide, Warranty Card,

DP cable, Power Cord, Remote

Controller, Batteries
