H and V Lens shift, H and V Keystone, 4 Corner adjutment,
HDBaseT, Display port, HDMI (MHL), VGA In/Out,
Wired remote, Confirmed all will be
3 year warranty, 1 year lamp warranty, Express Replacement.
Este producto se maneja sobre pedido
para proyectos de mayoreo la entrega es de 2 a 4 semanas.
Precio en Dólares Americanos.

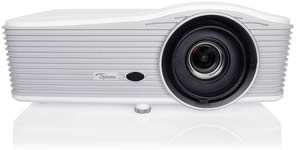

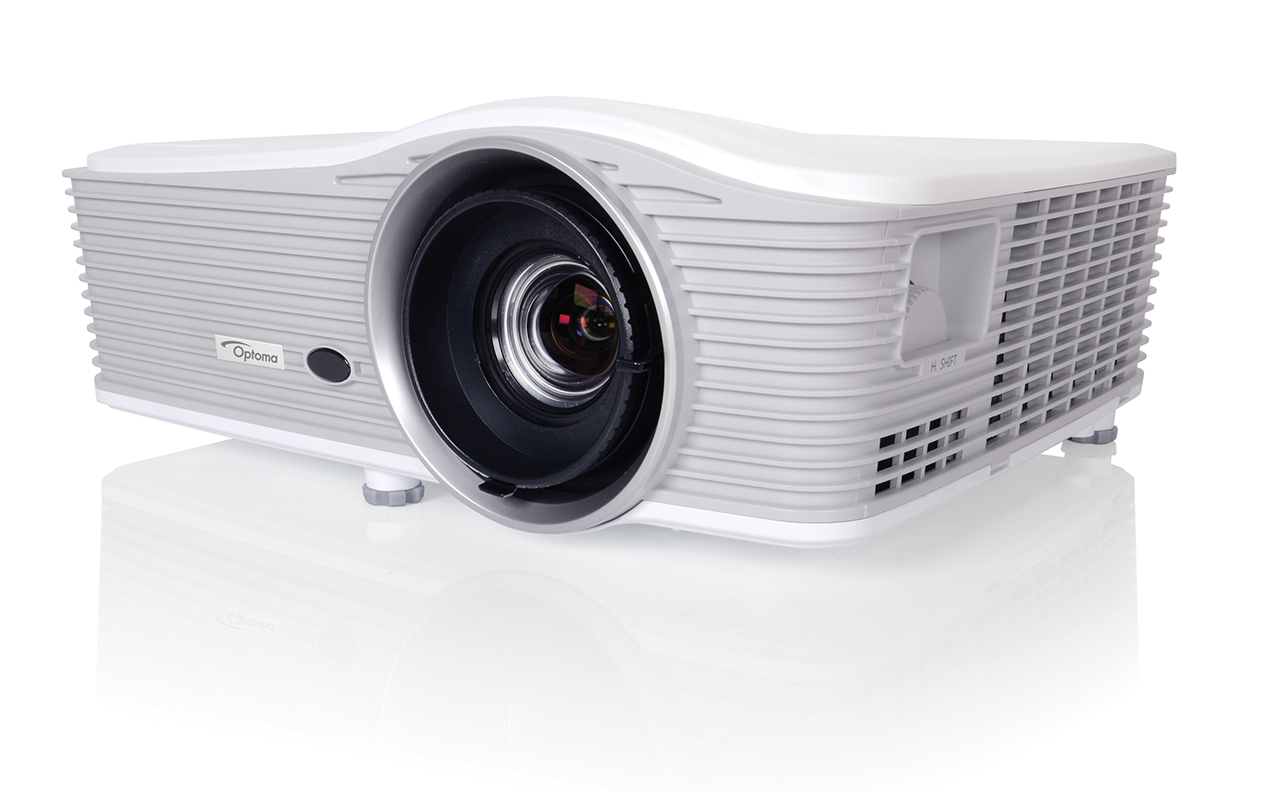

Widescreen WXGA DLP® Projector
4 corner Geometric Correction for easy installation of basic stacking solutions or on uneven walls 1.8x Zoom - excellent image from a short or long distance Vertical/ Horizontal keystone and lens shift for various applications Bright Projection at 6000 ANSI lumens for large installations Full Control over LAN and RS-232 using Crestron, IP Link, Extron PJ-Link, and Telnet Built-in HDBaseT ideal for long cable runs in the install environment
Optoma W515T is a professional Installation projector, ideal for corporate
environments, house of worship and Pro-AV installs. W515T DLP® technology
provides accurate colors and great contrast for dark and white images.
This great projector is furnished with advanced features to facilitate a quick installation.
Features include: Four corner correction (ideal for image stacking or uneven walls),
Horizontal and Vertical Lens shift and Keystone together with x1.8 zoom ratio, allows
a quick setup and easy usability from any angle.
Equipped with a variety of inputs, including HDBaseT, HDMI built in MHL technology,
allows you to connect to a wide variety of HD devices to easily display your content. In
addition, the environmentally friendly W515T has energy saving features including
Eco+ lamp power management, <0.5W standby mode and auto power off, saving
you both time and money by prolonging your lamp life.
Full HD (1920 x 1080) has more than twice the resolution of HD Ready
(1280 x 720). EH515T is compatible with
HDTV broadcasts and high-definition media to project impressive full
1080p images and video in their original digital brilliance.
Turn your projector into a smart display by connecting your smartphone
or tablet with a single cable using MHL, enabling you to view
presentations and documents, stream videos and share photos
on the big screen.
Single 0.65" WXGA chip, DLP® Technology by Texas Instruments™
WXGA 1280 x 800
10,000:1 (full on/full off)
Noise Level (Eco mode)
13 lbs (5.9 kg)
1x HDBaseT, 1x Display port, 2x HDMI 1.4a + MHL, 2x VGA-In, 1x VGA out, Composite Video, S-Video, 3x Audio-In (stereo, 3.5mm and RCA), 1x Audio-Out (3.5mm jack), 1x Mic in (3.5mm jack), 12v trigger, USB type-A 5V, 3D Sync vesa port, RS-232C, mini-USB (service/control), RJ45, AC power (3 pin)
1080p (1920 x 1080)
UXGA, SXGA, XGA, SVGA, VGA, WXGA, HD, Mac
PAL (B, D, G, H, I, M, N, 4.43MHz), NTSC (M, J, 3.58MHz, 4.443MHz), SECAM (B, D, G, K, K1, L, 4.25MHz, 4.4MHz, 480i/p, 576i/p, 720p(50/60Hz), 1080i(50/60Hz) 1080p(24/50/60Hz)
F=17.63 ~31.36 mm; manual focus
Throw Ratio 3
Projection Screen Size
26.6"~302.1" (0.67~7.67 m), Diagonal 16:10
4.26'–26.9' (1.3–8.2 m)
1.8x Manual zoom
16:10 Native, 16:9, 4:3, Auto
105% (± 5% variance)
Horizontal Scan Rate
Vertical Scan Rate
24– 85 Hz (120 Hz for 3D feature projector)
Lamp Life2 Eco/Bright
±30° Vertical; ±30° Horizontal
Dimensions (W x H x D)
16.7" x 6.3" x 13.5" (424 x 160 x 344 mm)
IR and wired control
AC input 100–240V @ 50–60 Hz, auto-switching
445W (Bright), 335W Max (ECO), <0.5W (Standby)
41–113°F (5~45°C), 85% max humidity
Kensington® lock port, security bar and password protection
W515T projector, AC power cord, VGA cable, remote control, batteries, multilingual CDROM user’s manual, quick start card and warranty card
Universal ceiling mount, Optoma screen, DLP® Link™ 3D glasses, wireless HDMI system
Vertical: +20%; Horizontal: ±10%(constraints apply see user manual for details)
Full 3D - The 3D features of Optoma projectors can only be used with compatible 3D content. Typical applications include use with 3D educational or 3D design and modelling systems. 3D TV broadcast systems, (SKY in the UK), Blu-ray 3D™ and 3D games from the Sony® PS3 or Microsoft® Xbox 360 are now supported as part of the HDMI v1.4a specification.
Side-by-Side:1080i(50/60Hz) Frame-pack: 1080p(24Hz), 720p(50/60Hz) Over-Under: 1080p(24Hz), 1080i(50/60Hz), 720p(50/60Hz) 3D glasses are needed and are sold separately. Refer to user manual for details.
