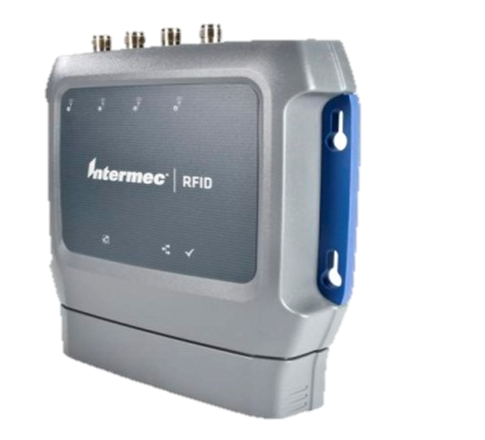

Lector Fijo INTERMEC F2A RFID USB RS-232



Precio en USD Dólares

General Description

The IF2 is a compact, cost-effective network

reader designed to support diverse passive

UHF RFID applications in both enterprise and

industrial environments. The IF2 supports Power

over Ethernet, four mono- or bi-static RF ports,

built-in powered general purpose input output

(GPIO) control, and both standards-based LLRP

and Intermec's easy to use Basic Radio Interface

(BRI) application interfaces, enabling scalable

low-cost deployments for improved return on

investment (ROI). The IF2 is packaged in a durable

enclosure for nearly any environment and is factory

configured to operate in regions across the globe.



Physical Characteristics

Length: 18.85 cm (7.42 in)

Length w/splashguard: 19.9 cm (7.87 in)

Width: 16.31 cm (6.42 in)

Height: 4.32 cm (1.70 in)

Weight: 1.0 kg (2.2 lbs)

LED Status Indicators: RFID service,

power, PoE, Ethernet, tag detection, and

antenna port connection status



Environmental

Operating Temperature: -20 to 50°C (-4 to 122°F)

Storage Temperature: -30 to 70°C (-22 to 158°F)

Relative Humidity: 5% to 95% (non-condensing)

Enclosure: IP53 sealing

Die cast magnesium base, Lexan plastic cover



Connectivity

Communications: 10/100 BaseT Ethernet

RS-232, USB for configuration

Input Power: PoE (802.3at compliant)

DC power input (12 VDC +/-5%, 30W), sealed/

locking connection. Requires optional

Intermec 100/240 VAC converter.



General Purpose

Input/Output (GPIO): Four input (0-40 VDC)

and four output (0-48 VDC, 0.25 amp) circuits,

powered via PoE or DC input (500 mA, 12 VDC)

RF Characteristics

Antenna Connections: Four reverse-polarity (RP) TNC

ports configurable for mono- or bi- static operation.

Antenna fault detection and auto tuning for best

performance

Output Power: 1 to 30 dBm, configurable in 1 dB steps

(calibrated above 9 dBm)

Frequency Ranges: FCC (902-928 MHz) and

ETSI (865-868 MHz), factory configured



Software Platform

Passive UHF Tag Protocols:

ISO 18000-6B

ISO 18000-6C

EPCglobal UHF Class 1 Gen 2

Tag Features:

NXP G2X, Impinj Monza 4QT extensions

High memory tags (Fujitsu, Tego, ATA)

Host Application Protocols:

EPCglobal LLRP

Intermec Advanced RFID Extensions (ARX)

Intermec Basic Reader Interface (BRI)

Intermec Developer Library (IDL) resource

kit for BRI (Java, C# .NET)



Management and Configuration:

Bonjour

Universal Plug and Play (UPnP)

Intermec SmartSystems client

Intermec Web Services and Web Configuration Interface



Network Protocols:

HTTP/HTTPS Web Server

IPv4, IPv6

DHCP, DNS, NTP, Syslog



Security

FIPS 140-2 compliance for HTTPS, LLRP-secure,

and Web Services (DCWS)-secure

RADIUS client support

SSL Certificate support



Restrictions on Use

Some approvals and features may vary by country and

may change without notice. Please check with your

local Intermec sales office for further information.





PRECIO USD CON IVA INCLUIDO Y GARANTÍA  EN MÉXICO

Las imágenes solo se muestran de forma ilustrativa.





Intermec
